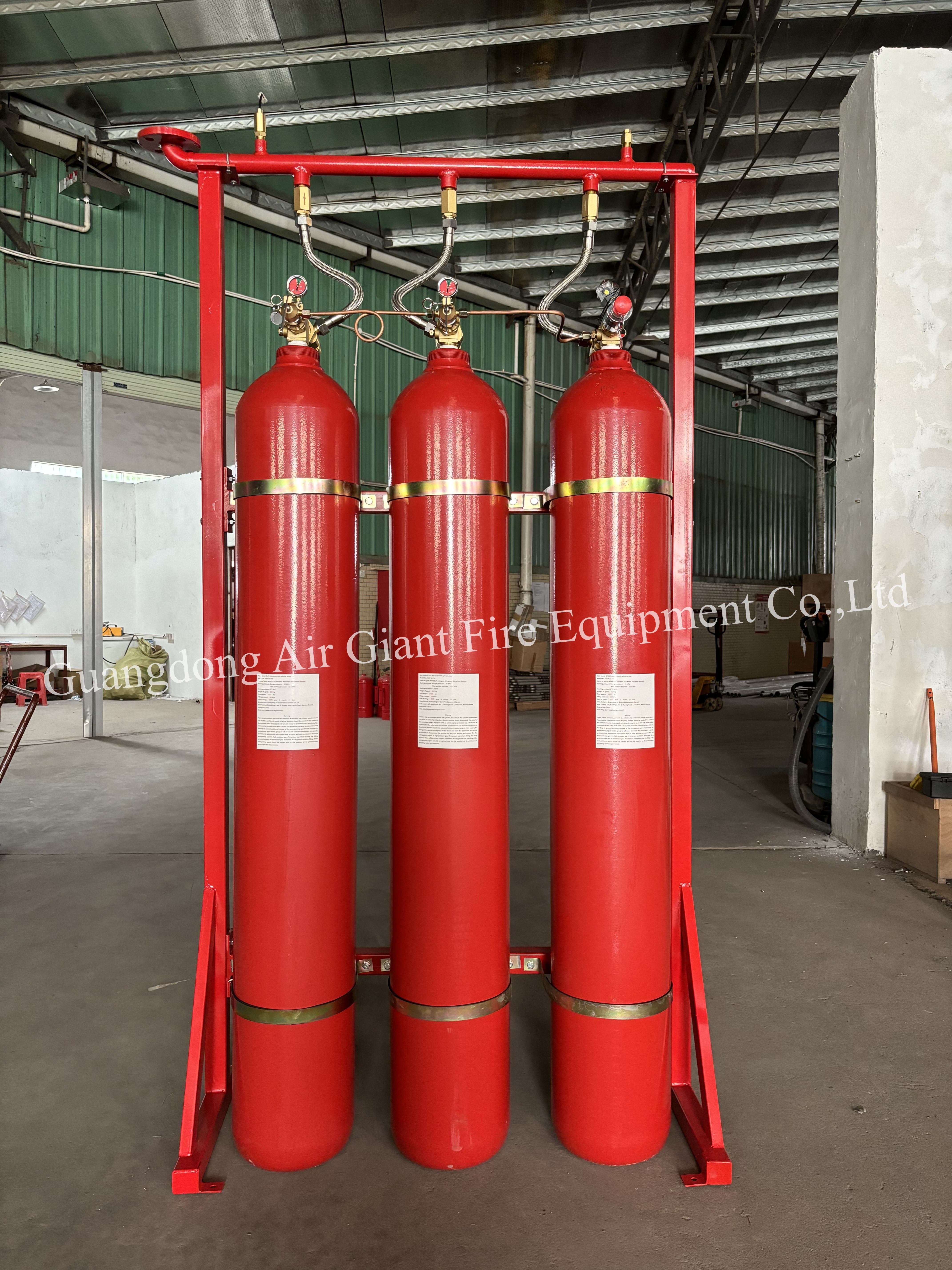

IG55 Clean Agent Suppression System, For Industrial
Description:
When a fire is detected, the IG55 system releases the inert gas mixture into the protected space. The gases quickly disperse, reducing the oxygen concentration to a level where the fire cannot sustain itself. The process is fast, efficient, and leaves no residue, ensuring minimal downtime and no secondary damage.
The IG55 fire extinguishing system is a reliable, sustainable, and effective solution for protecting critical infrastructure and assets from fire hazards. Its unique properties make it a preferred choice for industries where safety, environmental impact, and asset protection are paramount.
Technical parameters of IG55 fire suppression system
|
Working temperature (℃) |
0℃～+50℃ |
||
|
Working pressure |
Storage pressure |
20.0MPa |
30.0MPa |
|
Max. working pressure (+50℃) |
23.2MPa |
36.6MPa |
|
|
Min. working pressure (-20℃) |
18MPa |
27MPa |
|
|
Container volume (L) |
80L |
140L |
|
|
Filling weight (kg, @200 bar) |
22.32kg |
39.06kg |
|
|
Filling weight (kg, @300 bar) |
33.48 kg |
58.59kg |
|
|
System operating voltage |
220V AC,24V DC |
||
|
System start mode |
Electrical automatic, electrical manual, mechanical emergency start |
||
|
Design concentration |
Class A dangerous material surface fire |
40.3% |
|
|
Class B |
47.6% |
||
|
The design concentration of the protective zone with people working |
40.3%～43% |
||
|
1 |
Agent storage cylinder |
5 |
Container valve |
9 |
Manifold |
13 |
Container valve for driving cylinder |
17 |
Select valve |
|
2 |
Frame |
6 |
Flexible hose |
10 |
Reducing devise |
14 |
Solenoid actuator |
18 |
Pressure switch |
|
3 |
Cylinder clamp |
7 |
Safety valve |
11 |
Pilot tube |
15 |
Relief valve |
19 |
Nozzle |
|
4 |
Gas driving actuator |
8 |
Liquid flow check valve |
12 |
Driving cylinder |
16 |
Gas flow check valve |
|
|
-- Clean and Non-Residu
-- Environmentally Friendly
-- Safe for Occupants
-- Effective Fire Suppression
-- Non-Conductive
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
