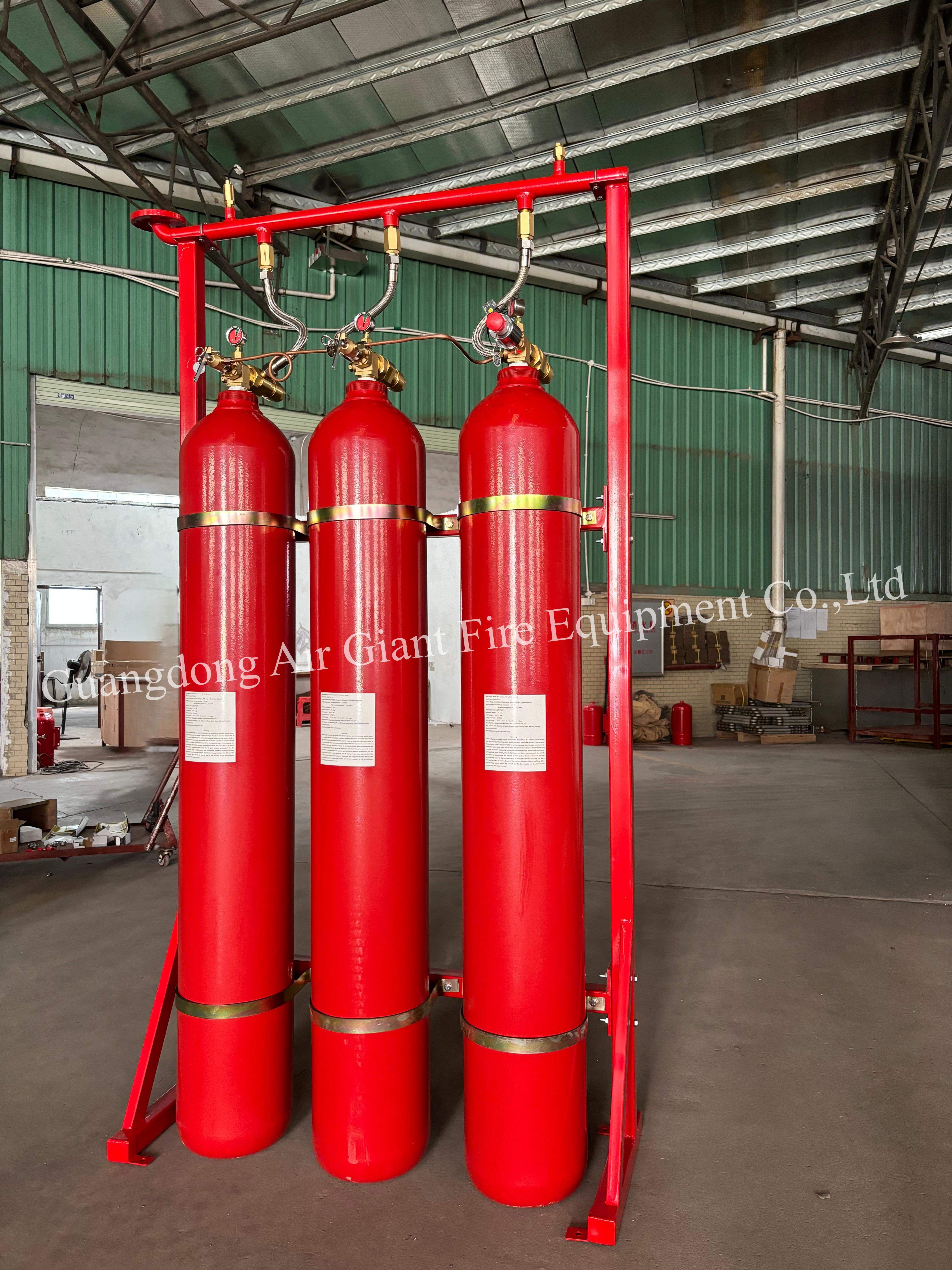

IG55 Argonite Fire Suppression System With 20MPa/30MPa Pressure
Description:
IG-55 is a unique gas blend, containing equal parts of two natural components: 50% argon and 50% nitrogen. This combination of gases offers numerous benefits and uses in various industries.
Since its components occur naturally in the environment, IG-55 does not contribute to global warming and is also environmentally friendly as it does not harm the ozone layer. Additionally, it has a similar density to air, making it easy to handle and use.
Clean and Versatile
Both argon and nitrogen are clean, non-corrosive, colorless, and tasteless gases, making them suitable for a wide range of applications. They are also compatible with various materials such as nickel, steel, stainless steel, copper, bronze, and tin, making them highly versatile in adapting to different actuation systems.
Storage and Pressure
IG-55 is typically stored in high-pressure cylinders, similar to other compressed gases. The size of the storage space required depends on the gas's pressure and capacity. Our IG-55 system is designed to operate at a pressure of 30MPa, allowing for efficient use of space and cost savings.
Technical parameters of IG55 fire suppression system
|
Working temperature (℃) |
0℃～+50℃ |
||
|
Working pressure |
Storage pressure |
20.0MPa |
30.0MPa |
|
Max. working pressure (+50℃) |
23.2MPa |
36.6MPa |
|
|
Min. working pressure (-20℃) |
18MPa |
27MPa |
|
|
Container volume (L) |
80L |
140L |
|
|
Filling weight (kg, @200 bar) |
22.32kg |
39.06kg |
|
|
Filling weight (kg, @300 bar) |
33.48 kg |
58.59kg |
|
|
System operating voltage |
220V AC,24V DC |
||
|
System start mode |
Electrical automatic, electrical manual, mechanical emergency start |
||
|
Design concentration |
Class A dangerous material surface fire |
40.3% |
|
|
Class B |
47.6% |
||
|
The design concentration of the protective zone with people working |
40.3%～43% |
||
|
1 |
Storage Cylinders |
5 |
Smoke Detectors, Heat Detectors |
9 |
Manual Release Station |
|
2 |
Release Device |
6 |
Control |
10 |
Backup Power Supply |
|
3 |
Piping Network |
7 |
Audible and Visual Alarms |
11 |
Signage and Instructions |
|
4 |
Nozzles |
8 |
Pressure Switches and Gauges |
12 |
Ventilation System(selection) |
-- No Harmful Byproducts: Safe for both people and the environment.
-- Fast Activation: Rapid fire suppression to minimize damage.
-- Low Storage Pressure: Requires less storage space compared to other gaseous systems.
-- Compliance: Meets international fire safety standards, including NFPA, ISO, and EN.
.
• Computer room, communication room, power distribution room, library, archives, Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas source before extinguishing occur, etc.
